Model T Identification
Model T Vehicle Identification
MAC's DISCLAIMER:
The content MAC's presents on its "Vehicle Identification & Specification" pages & in its catalogs is for information use only and is intended to be used as a guide. While MAC's makes every effort to ensure accurate content, occasionally errors may occur. MAC's does not take responsibility & will not be held liable for any automotive parts purchases, repairs or restoration decisions made as a result of information presented here or anywhere in its catalogs.
Roadster (Runabout) - Open Car - folding top, no side windows, front seat only.
Coupe - Closed Car - two doors, enclosed interior with front seats only, side glass windows.
Tudor Sedan - Closed Car - two doors, enclosed interior with front and rear seats, side glass windows.
Fordor Sedan - Closed Car - four doors, enclosed interior with front and rear seats, side glass windows.
Touring - Open Car - folding top, no side windows, front and rear seats.
Centerdoor Sedan - Closed Car - enclosed interior with front and rear seats, side glass windows, door positioned in the center of the body.
TT Truck - enclosed interior, adaptable chassis/rear cargo area, worm drive rear axle )
Roadster Pickup - Open Car - no side windows, front seat only, rear bed for cargo.
"C" Cab Truck - distinctive C shape of side windows.
Year
Serial Number
1908
1-309
1909
310-14,161
1910
14,162-34,900
1911
34,901-88,900
1912
88,901-183,563
1913
183,564-408,347
1914
408,348-656,063
1915
656,064-1,028,313
1916
1,028,314-1,614,516
1917
1,614,517-2,449,179
1918
2,449,180-2,831,426
1919
2,831,427-3,659,971
1920
3,659,972-4,698,419
1921
4,698,420-5,638,071
1922
5,638,072-6,953,071
1923
6,953,072-9,008,371
1924
9,008,372-10,994,033
1925
10,994,034-12,990,076
1926
12,990,077-14,619,254
1927
14,619,255-15,076,231
Year
Serial Number
5/20/13
C-1
7/31/13
C-1,500
7/31/14
C-16,500
7/31/15
C-37,500
7/31/16
C-70,000
7/31/17
C-121,000
7/31/18
C-170,000
7/31/19
C-208,500
7/31/20
C-262,500
7/31/21
C-311,300
7/31/22
C-357,200
7/31/23
C-427,300
7/31/24
C-513,405
7/31/25
C-583,300
7/31/27
C-750,000
Prior to 5/20/13, Canadian cars used US production engines, they did not say "MADE IN USA".
( Back to Top )

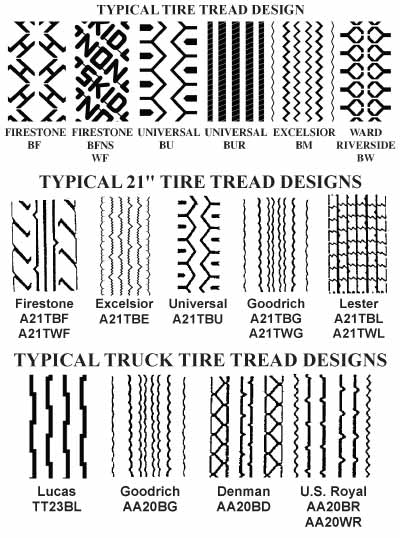

Recommended Tire Pressures
Under-inflation can result in rim cuts, even on the best of rims. Recommended tire pressures are:
Tire Size
Inflation Pressure
Rim Diameter
30 x 3"
55-65 psi
23"
30 x 3-1/2"
55-65 psi
24"
450 x 21"
32 psi
21"
500 x 23"
60 psi
32"
600 x 20"
36-60 psi
30"
( Back to Top )
Piston Specifications
Cylinder Bores: 3.750" Diameter 6.752" Long
Diameter: Skirt 3.748" 3.749" 2nd Ring 3.743" 3.745"
Top 3.738" 3.740"
Ring Grooves 1/4" x 13/64" Deep
Pin Bushing Diameter .740" .741"
Wrist Pin Diameter .740" .741"
Wrist Pin Length 3-1/2"
Ring Gaps (original rings) 3.750" Top .003" Center .005" Bottom .008"
When installing any type of piston, the split in the skirt
faces away from the camshaft.
( Back to Top )
Magneto Coil Assembly Identification Table
Year
Spool
Removable
Spool Pole
Spool Pole
Magneto Rung Material
Copper Width
For Use With
Magnet Thickness
Magnet Thickness
Usage
MAC's
Part Number
Part Number
Notes
1909
Double stack round
Yes
Cast Iron
3/8" each stack
1/2"
First 17500 cars
T3250ES
Special order
1910
Double stack round
Yes
Cast Iron
1/4" each stack
9/16"
17501 to 20500
T3250ES
Special order
1910-12
Double stack round
Yes
Stamped steel
1/4" each stack
5/8"
2 flat sides on pole plate
T3250ES
Special order
1913-14
Double stack round
No
Cast Iron
1/4" each stack
5/8"
Beginning by October 1914
T3250ES
Special order
1915 17
Double stack oval
No
Cast Iron
1/4" each stack
3/4"
Without starter notch
T3250DE
Stock
1917 18
Single stack oval
No
Cast Iron
1/4"
3/4"
Without starter notch
T3250DL
Stock
1919 27
Single stack oval
No
Cast Iron
3/16"
3/4"
With starter notch
T3250DS
Stock

( Back to Top )
Fan Belt Specifications
The following are the most common fan belt lengths for T3900WP & T3900WPL. However, modified upper & lower pulleys can affect which belt is needed. Check your belt with a measured string before ordering.
Years
Belt Length
Years
Belt Length
FOR T3900WP
FOR T3900WPL
09-16
31"
09-16
28-1/4"
17-25
32"
17-19
31"
26-27
36"
20-25
32"
26-27
33-3/4"
MAC's offers three kinds of fan belts: plain rubber, plain rubber with “Ford� script & plain leather.
Rubber Fan Belts: Close to the original, with heavy-duty 5-ply
reddish-tan rubber material. All are 1-1/8" wide with a glued, overlapping lamination joint.
Leather Fan Belts: Not original, but they are very durable. They might stretch, so are made slightly undersize. They are stitched at the joint & around the circumference.
( Back to Top )
Fan Specifications
Drive pulley ID: 1.83"-1.84"
Drive pulley OD: 3"
Prior to 1920.
Hub ID: .499"-.500"
Prior to 1920.
( Back to Top )
Engine Specifications
22.50 horsepower
Spark plug firing order: 1-2-4-3. 1 is on the radiator side
of the engine.
Spark Plug Gap: .030"
( Back to Top )
Crankshaft Specifications
Overall length 22-5/32"
Connecting rod bearing diameters (all) 1.248"
Bearing lengths Front 2" Center 2-3/16"
Rear 3-1/8" Rods 1.505"
Main Bearings 1.248-1.249"
( Back to Top )
Camshaft Specifications
Overall length: 22-23/32" Bearing diameters (all) .748"
Bearing lengths:Front 1.967" Center 2-7/16" Rear 1.750"
Width of cams: 7/8"
Heel cam diameter: 13/16"
Greatest diameter of cam: 1-1/16"
Flange diameter: 1-3/4"
Flange width: 1/4"
Dowel holes: .3120-.3125"
Thread: Large 13/16 x 16 USF Small 9/16 x 18 SAE
Camshaft Bearing Holes Front 1.374-1.375" Center 1.372-1.373" Rear .9985-1.000"
( Back to Top )
Cam Specifications
Bearing (center) ID: .7496"-.7500"
Bearing (center) OD: 1.369"-1.370"
Bearing (front) ID: .7496"-.7500"
Bearing (front) OD: 1.372"-1.373"
Shaft journal OD: .7488"-.7491"
( Back to Top )
Cylinder Specifications
Cylinder Bores: 3.750" diameter 6.752" long
Cylinder Head Bolt Holes: 7/16" x 14
( Back to Top )
( Back to Top )
Oil Usage Specifications
Engine: (4-5 quart capacity) 30 non-detergent
Rear end: (1 to 1-1/2 quart capacity) 600W
( Back to Top )
Push Rod Specifications
Length: 2-11/32"
Diameter: .4355"-.4365"
Head diameter: 1"
Guide holes: .437"
( Back to Top )
Valve Specifications
Diameter of head & upper edge of seat: 1-17/64"-1-9/32"
Diameter of lower edge: 3/32"
Angle of valve seat: 45°
Thickness of head: 3/16"
Stem diameter: .3105"-.312"
Overall length: 4.974"+
Retainer pin hole: .110"-.113"
4-19/32" from valve seat line
Lift: 7/32"
Tappet to stem clearance: .022"-.032"
Valve ports: 1-5/16"
Stem guide holes: .3125"
( Back to Top )
Rear Spring Specifications
Main leaf length: 45-1/4"
Main leaf height: 10-1/2"
2nd leaf length: 43-3/8"
3rd leaf length: 36-9/16"
4th leaf length: 30-3/8"
5th leaf length 24-7/8"
6th leaf length 19-3/4"
7th leaf length 15-1/16"
8th leaf length 12-3/9"
Leaves 3-8 are clip type.
( Back to Top )
Front Spring Specifications
Fully assembled length (tapered style): 31-1/4" to 31-3/8"
Height: 3-3/8 to 3-1/2"
For early type perch, shackle bore & wishbone bore are parallel to each other, 1-7/16" apart.
Perch center line distance: 1-7/16"
Perch camber: 4° 30'
Changed to 5° 30' during the 1920s.
( Back to Top )
Shackle Bushings Specifications
Front, OD: .686"-.687"
Front, ID:.563"-.565"
Rear, OD .748"-.750"
Rear, ID .587"
( Back to Top )
Steering Specifications
Steering arm ball diameter: 1-1/8"
Steering arm length: 4-1/4" overall
Steering gear cover opening: .937"-.938"
Steering cover retaining bolt: #6 x 32 (ASME) 5/16" deep
Steering ball arm to frame support clearance: 1/8"
Steering main shaft to frame support angle: 41° 26'
Steering column flange to center shaft angle: 39°45'
Steering tube opening at dash: .752"-.756"
Steering gear housing shaft opening: .780"-.781"
( Back to Top )
Throttle Specifications
Lever to throttle arm angle: 45°
Locates throttle on arm shaft.
Arm length: 1-3/8"
( Back to Top )
Spark Specifications
Lever to spark arm angle: 111°
Locates spark arm on shaft.
Arm bend angle: 46°
Bent towards front of car.
( Back to Top )
Brake Specifications
The brake rod has 2 bends; one 1-7/16" from clevis end & the other 2-3/4" from the threaded end (excluding bends for clearance of radius rod).
Rod pin OD: .316"
Pull rod pin hole diameter: .316"
Rod length: 54-1/4" Center of clevis to end of rod.
Drum lug width: 1/2"
( Back to Top )
( Back to Top )
Triple Gear Pin Specifications
At gear: .6770"-.6775"
In flywheel: .6790"-.6800"
At end: .6860"-.6870"
Flywheel Hole for Triple Gear Pin: .6750"
( Back to Top )
( Back to Top )
Transmission Specifications
Drive plate clutch finger screw holes: 13/32"
Changed in the 1920s.
Clutch drum shaft mounting hole ID: .9980"-.9985"
Clutch drum shaft lug opening: 1/2"
Band with lining ID: 7-1/2"
Transmission driven gear ID: 1-15/32-1-1/2"
Push ring thickness: 9/16"
Main shaft diameter: 1-5/32"
( Back to Top )
Clutch Specifications
Release fork (hole for collar) size: .373"-.375"
Lever shaft OD: .624"-.626"
Fork push ring width at fork area: .403"-.409"
Finger mounting pin hole diameter: .346"-.348"
Holes in drive plate: 3.
( Back to Top )
( Back to Top )
Muffler Specifications
Inlet ID: 1-33/64"
Cast iron muffler.
Tailpipe length: 10-3/4"
Exposed length, cast iron muffler.
( Back to Top )
Starter Crank Specifications
Sleeve ID: .755"-.757"
Sleeve OD: .992"-.966"
Ratchet ID: .749"-.751"
Ratchet pin hole: .310"
Crank Case Trunnion with Cap ID
Front spring hanger:1.498"-1.500"
( Back to Top )
Oil Pan & Tube Specifications
Pan arm upper mounting hole distance: 21.5" to center
Pan rear flange to center of pan arm: 12-9/32"
Pan arm width at frame opening: 9-7/8" (x2)
from center line of pan to edge of pan arm at lower bolt holes
Pan front (trunnion) bearing:
OD: 1.494"-1.496"
ID: .999"-1.000"
Width: 1.000"-1.002"
Oil tube ID: 9/32"
( Back to Top )
Universal Joint Shank Specifications
Universal Joint Shank: .873"-.875"
Outer Diameter Universal Joint Ring Inner Diameter: .999"-1.000"
( Back to Top )
( Back to Top )
Crossmember Specifications
Front Crossmember Overall Length: 22-3/4"
Length: 21.5" to center of fender iron mounting holes
( Back to Top )
( Back to Top )
Front & Rear Hub Specifications
Front hub ID for small bearing race: 1.9335"-1.9365"
Front hub ID for large bearing race: 2.715"-2.716"
Rear hub opening at wide end: 1-1/16"
Taper angle: 1-1/2" per foot
Rear hub brake drum ID: 8"
( Back to Top )
Drag Link & Tie Rod Specifications
Drag link ball socket radius: 19/32"
Tie rod yoke ID: (upper end) .562"-.563"
Tie rod ball OD: 1-3/32"
( Back to Top )
Front Axle Specifications
Yoke opening for spindle body: 4.748"-4.752"
Bore for spindle bolt (kingpin): 5.045"-.505"
for first 5/16" of lower yoke, then 1/2" x 20 SAE threads to end
Spindle body length: 4.748"-4.750" (end size)
Width of yoke (upper): .685"-.690"
Width of yoke (lower): .685"-.690"
( Back to Top )
