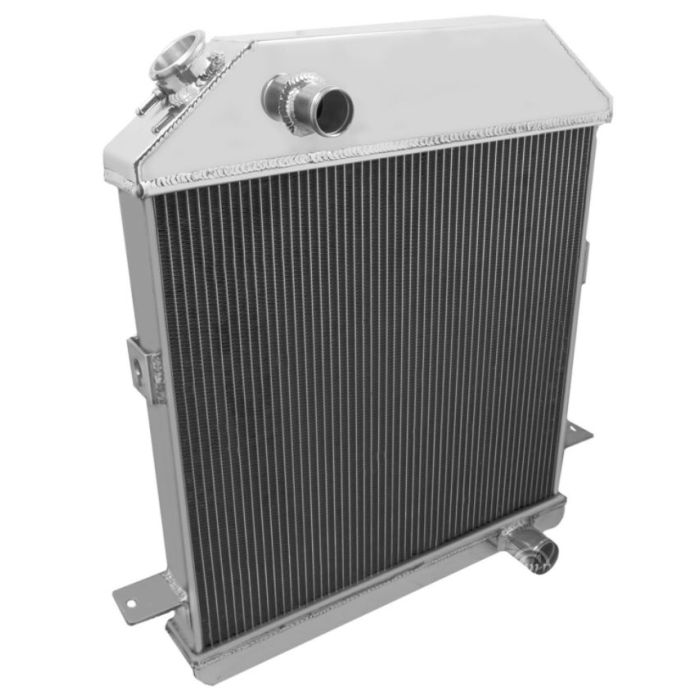

1939-1940 Ford 3-Row Champion Aluminum Radiator For Chevy Configuration

0% of 100
0  Reviews Add Your Review
$273.99 Each
Deluxe, 1939 thru 1941 View More
Product Details
Flange-Mounted All Aluminum Champion 3-Row Radiator Wi... View More
Shipping Notes
This item has additional shipping charges due to heavy weight or oversize dimensions.
Availability: Ships Direct From Manufacturer
  • Flange-Mounted All Aluminum Champion 3-Row Radiator With Fittings
  • Cools Up To Approximately 600 Horsepower
  • High-Flow Design With 3 Rows Of 5/8" Tubing
  • 100% TIG Welded Seams With Brazed Cores (No Epoxy)
  • Thick Billet Fill Neck With TIG Welded Base (Not Pressed In)
  • 50%-75% Lighter Than Typical Copper/Brass Radiator
  • Includes 16 Lb. Radiator Cap
  • Transmission Cooler NOT Included
  • ISO Certified Manufacturing For Consistent Premium Quality
  • Limited Lifetime Manufacturer Warranty
Your classic Ford can get hot... really hot! Driving and idling in traffic on 90+ degree summer days can push your stock cooling system to its limits... and unfortunately, beyond. Factory brass radiators are barely satisfactory at transferring heat, which is why they overheat when you least expect it. Why take chances with your valuable engine? Step up to Champion's all-aluminum, high efficiency radiator. Aluminum alloy is a far superior metal to the original equipment copper-brass construction because it dissipates (or "radiates") heat much more quickly and cools down much more rapidly. Heat transfer from your engine to the atmosphere is greatly increased, thereby lowering the temperature of the engine coolant dramatically. An aluminum radiator will out-cool a copper brass radiator of similar size and construction by at least 40%. As a bonus, it's 50-75% lighter than your typical brass/copper radiator. Install this Champion high efficiency aluminum radiator in your classic and make cooling problems a thing of the past! Trust Mac's for all your Ford restoration, accessory, and performance needs.

NOTE: Dimensions: 25.13" tall x 25.5" wide. Core: 19" tall x 20.88" wide x 2" thick. Inlet: 1.5" driver's side. Outlet: 1.75" passenger side. Tanks: 2.88" thick. Tubes: 0.63" thick.

Ford 3-Row Champion Aluminum Radiator For Chevy Configuration

Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit
More Information
Eck OEM Number CC4001CH
Brand Champion Radiators
Availability Ships Direct From Manufacturer

Products from the same brand

Make / Model Series Body Notes Year
Make / Model Ford Deluxe Base Series Body Notes Year 1939, 1940, 1941
Make / Model Ford Early V8 Series Body Notes Model 1 GA/11 A Or Deluxe, Chevy Configuration Year 1941
Make / Model Ford Standard Base Series Body Notes Year 1939, 1940
Make / Model Ford Super Deluxe Base Series Body Notes Year 1941
Make / Model Mercury Early V8 Series Body Notes Series 99A, Chevy Configuration Year 1939, 1940
