SKU
48-70960-1
Alt #:
64-70960

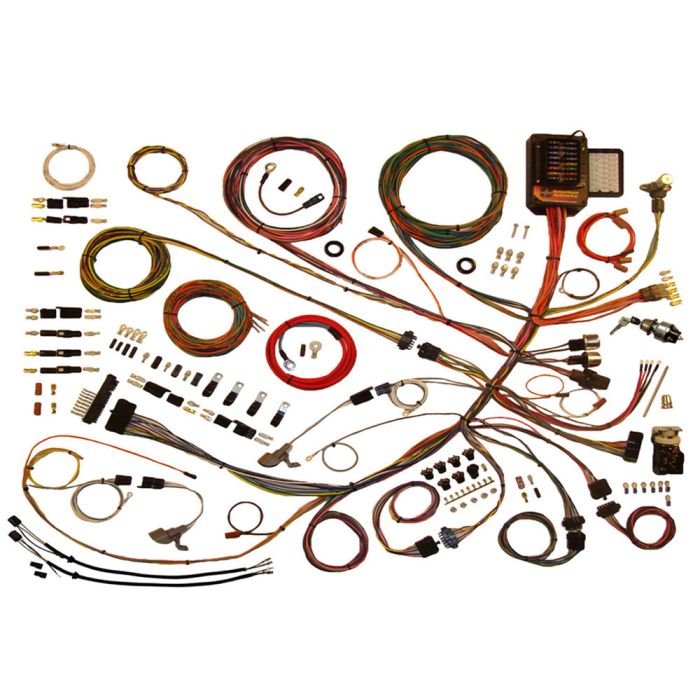

1953-56 Ford Pickup Complete Wiring Kit

0% of 100
0  Reviews Add Your Review
$614.99 Kit
Fitment
F-100, 1953 thru 1956 View More
Product Details
Complete Wiring Kit Makes Wiring Easy! Fits all F Se... View More
Availability: In Stock

  • Complete Wiring Kit
  • Makes Wiring Easy!
  • Fits all F Series applications including Panel Truck
  • Works With Stock and Custom Set Ups
  • Detailed Instructions Included

This is for modified applications only. It will not work with stock 6 volt systems. It is designed for use with a higher current self-exciting 1 wire, or other style internally regulated alternator.

This kit is one of the most complete wiring kits available on the market today. Designed to make wiring easy, this kit has many different features to do just that!

This kit will fit all F series applications including Panel Trucks. Fuse panel is fully encased and comes with mounting pads and hardware. The harness is formed to accommodate just about all aftermarket accessories such as wiper systems, gauge packs, heating and A/C. Original switch connector bodies are included, and the steering column connectors will plug in directly with most aftermarket steering columns as well as original stock steering columns using the included adapter and terminals.

The instrument cluster is made with a cluster harness disconnect system design, allowing easy assembly and service to the instrument cluster. Original connectors and terminals are also included for the instrument cluster for stock connections. This system will also easily connect to most popular aftermarket gauges.

The rear body harness connects to the main body harness at the left kick panel. The longer leads in this kit allow for custom as well as stock routing of the wire, and the backup and taillight leads are designed to easily plug into stock Ford pigtail assemblies.

The engine wiring has leads for electric speedometer and choke, water temperature, oil pressure, ignition coil, and tachometer. A heavy gauge alternator feed and fusible link are included for any typical high output 1-wire or internally regulated alternator. The front lighting wiring has long leads which allows for both custom and stock wire routing.

Detailed instructions included.

1953-1956 Ford Truck complete wiring kit upgrades your truck wiring to accommodate modern accessories-12-volt systems.


Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
More Information
Alt. # 64-70960
Brand American Autowire/Factory Fit
Availability In Stock

Products from the same brand

  1. 1961-66 Ford Pickup Truck Complete Wiring Kit
    1961-66 Ford Pickup Truck Complete Wiring Kit American Autowire/Factory Fit
    $599.99 Kit
  2. 1967-72 Ford Pickup Complete Update Series Wiring Kit, F100-F350
    1967-72 Ford Pickup Complete Update Series Wiring Kit, F100-F350 American Autowire/Factory Fit
    $829.99 Kit
  3. 1973-1979 Ford F100-F350 Complete Wiring Kit
    1973-1979 Ford F100-F350 Complete Wiring Kit American Autowire/Factory Fit
    $799.99 Kit
  4. 1978-1979 Ford Bronco Complete Wiring Kit
    1978-1979 Ford Bronco Complete Wiring Kit American Autowire/Factory Fit
    $799.99 Kit
  5. Power Tailgate Harness, 1978-1979
    Power Tailgate Harness, 1978-1979 American Autowire/Factory Fit
    $71.10 Kit
Make / Model Series Body Notes Year
Make / Model Ford F-100 Base Series Body Notes Year 1953, 1954, 1955, 1956
Make / Model Ford F-250 Base Series Body Notes Year 1954, 1955, 1956
Make / Model Ford F-350 Base Series Body Notes Year 1954, 1955, 1956
Make / Model Ford Truck Series Body Notes Year 1953, 1954, 1955, 1956
