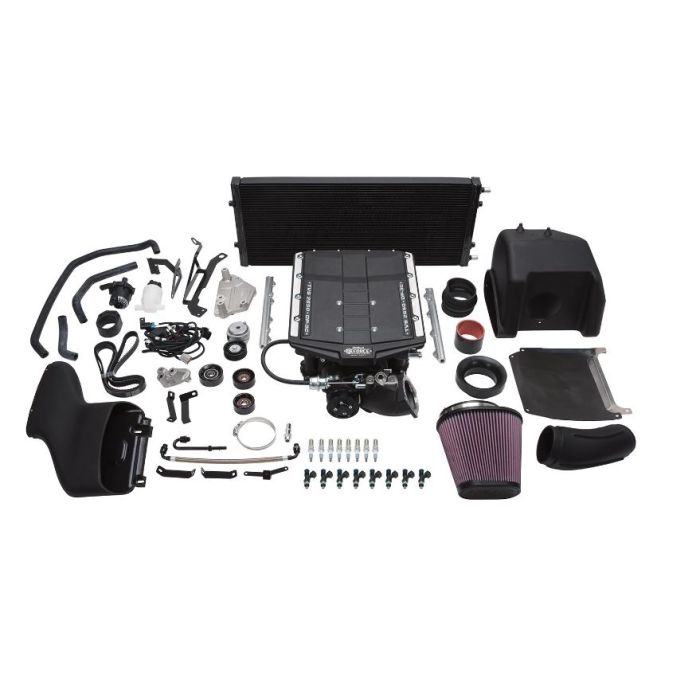

2015-2017 Ford F-150 Edelbrock E-Force 15570 Stage 1 Supercharger Kit
Fitment
Product Details
Shipping Notes
- Stage 1 Street System
- 5.0L 4V Without Tune
- Cast Aluminum housing
- 150 ML Oil capacity
- Mounting hardware included
- 6 rib pulley
- 3.5 inch outside pulley diameter
- 533 Wheel horsepower, 482 wheel torque
The Edelbrock supercharger Stage 1 Street System part #15570 for 2015-17 Ford F-150 increases the performance of your 5.0L 4V engine to 533 horsepower and 482 ft-lbs of torque at the rear wheels when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program
2015-2017 Ford F-150 Edelbrock E-Force 15570 Stage 1 Supercharger Kit
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Base Part Number | 880841 |
---|---|
Brand | Edelbrock |
Make / Model | Series | Body | Notes | Year |
---|---|---|---|---|
Make / Model Ford F-150 | Series | Body | Notes | Year 2016, 2017 |
Make / Model Ford F-150 King Ranch | Series | Body | Notes | Year 2015, 2016, 2017 |
Make / Model Ford F-150 Lariat | Series | Body | Notes | Year 2015, 2016, 2017 |
Make / Model Ford F-150 Limited | Series | Body | Notes | Year 2016, 2017 |
Make / Model Ford F-150 Platinum | Series | Body | Notes | Year 2015, 2016, 2017 |
Make / Model Ford F-150 XL | Series | Body | Notes | Year 2015, 2016, 2017 |
Make / Model Ford F-150 XLT | Series | Body | Notes | Year 2015, 2016, 2017 |
