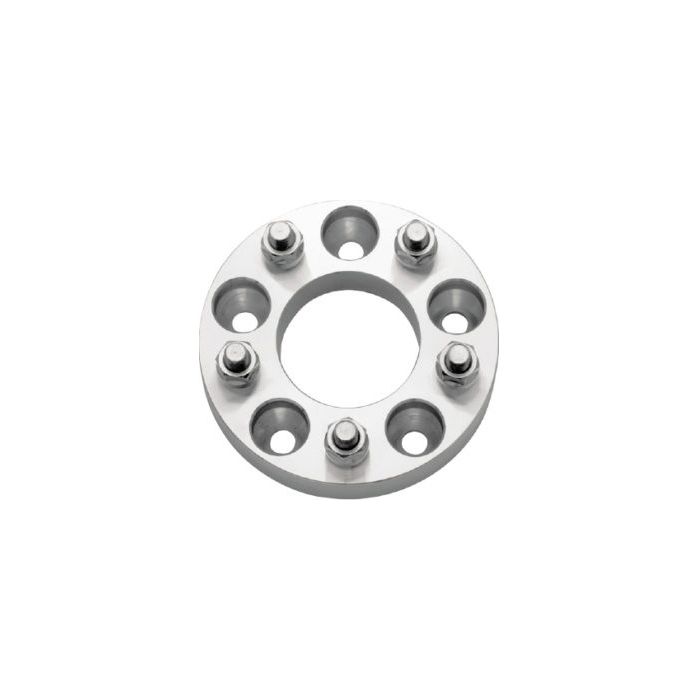

Billet Wheel Adapter-1.25" Thick, 5 x 4.5" With 1/2-20 Thread Studs
Product Details
- 1-1/4" Thick
- 1/2-20 Thread Size
- 5 x 4.5" To 5 x 4.5" Bolt Pattern
- 74mm Hub Inside Diameter
- NOT Hub-Centric
- Includes Five Lug Nuts
- Sold Each
This wheel adapter is a simple, safe way to move your wheels out away from the body. They bolt on the original studs, then provide new studs which the wheel attaches to. This is 1.25" thick which is thicker than most factory wheel studs. If you do find yours extend past the surface of the wheel spacers you will need to:
- Shorten the factory studs
- Have wheels which have open slots (cavities) between mounting holes
- Purchase a set of shorter studs and install them in place of the factory studs
This adapter has a large 74mm center opening which is larger than most factory hubs. It is not hub-centric however, so you will want to be sure there is plenty of contact surface on the wheel studs for your lug nuts. We offer extended-reach lug nuts to help with this but your wheels must be machined from the factory to accept them. The bolt pattern is the common Ford/Mercury 5 x 4.5", which is also sometimes expressed as 5 x 114.3mm or 5 x 115mm. This listing is for just one adapter, but check our other listings for pairs and sets of four.
Billet Wheel Adapter-1.25" Thick, 5 x 4.5" With 1/2-20 Thread Studs
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Base Part Number | 857103 |
---|---|
Brand | N/A |
