SKU
48-95066-1
Alt #:
64-95066

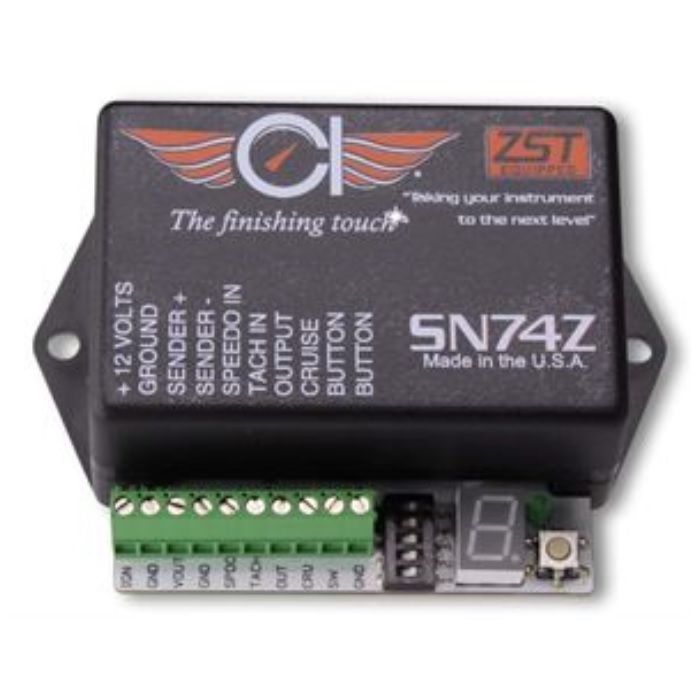

Classic Instruments(r) Speed Signal Interface
0
Reviews
Add Your Review
$135.99
Each
Fitment
Edge, 2007 thru 2017
View More
Product Details
The SN74Z has the following features when used as a Speedometer interface:
Input Source Options
Three wire pulse signal generator input source
Built-in Vehicle Speed Sensor (VSS) input source - Most Tremec transmissions and later model 700R4’s
Two wire pulse signal generator input source
Classic Instruments SN96 or SN95
One wire ECM signals input source
Output
The output can be selectable between either 8000 pulse per mile or 16000 pulse per mile
Outputs a 12V square wave, 50% duty cycle
8000 pulse per mile cruise control output
Additional Benefits
Three different calibration options
Instant: drive 30 MPH and press the calibration button
Real-Time: press and the hold the calibration button to match the speedometer reading to the actual vehicle speed
Marked Mile: Drive a measured mile to calibrate the speedometer
Input signal can range from 2000-200,000 pulses per mile
State of the art signal averaging software that ensures smooth pointer operation, even in fluctuating signal conditions.
Noise-reducing, filtered power output for powered speedometer signal generators
Classic Instruments® and MAC's are proud to be partners helping enthusiasts build their dreams!
Availability:
Ships Direct from Manufacturer - 2-3 Week Delivery
- Quality Resto-Mod Part
- A Great Upgrade For Classic Instruments® Gauge Packages
- Made In USA
- Classic Instruments® Offers A Full 5 Year Warranty On All Orders!
The SN74Z has the following features when used as a Speedometer interface:
Input Source Options
- Three wire pulse signal generator input source
- Built-in Vehicle Speed Sensor (VSS) input source - Most Tremec transmissions and later model 700R4’s
- Two wire pulse signal generator input source
- Classic Instruments SN96 or SN95
- One wire ECM signals input source
Output
- The output can be selectable between either 8000 pulse per mile or 16000 pulse per mile
- Outputs a 12V square wave, 50% duty cycle
- 8000 pulse per mile cruise control output
Additional Benefits
- Three different calibration options
- Instant: drive 30 MPH and press the calibration button
- Real-Time: press and the hold the calibration button to match the speedometer reading to the actual vehicle speed
- Marked Mile: Drive a measured mile to calibrate the speedometer
- Input signal can range from 2000-200,000 pulses per mile
- State of the art signal averaging software that ensures smooth pointer operation, even in fluctuating signal conditions.
- Noise-reducing, filtered power output for powered speedometer signal generators
Classic Instruments® and MAC's are proud to be partners helping enthusiasts build their dreams!
Speed Signal Interface From Classic Instruments®
Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Phthalates which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
WARNING This product can expose you to chemicals including Phthalates which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Base Part Number | 95066 |
---|---|
Alt. # | 64-95066 |
Eck OEM Number | SN74Z |
Brand | N/A |
Make / Model | Series | Body | Notes | Year |
---|---|---|---|---|
Make / Model Ford Edge | Series | Body | Notes | Year 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 |
Make / Model Ford Excursion | Series | Body | Notes | Year 2000, 2001, 2002, 2003, 2004, 2005 |
Make / Model Ford Expedition | Series | Body | Notes | Year 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021 |
Make / Model Ford Explorer | Series | Body | Notes | Year 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 |
Make / Model Ford Explorer Sport Trac | Series | Body | Notes | Year 2001, 2002, 2003, 2004, 2005, 2007, 2008, 2009, 2010 |
Make / Model Ford F Series | Series | Body | Notes | Year 1948, 1949, 1950, 1951, 1952 |
Make / Model Ford F-100 | Series | Body | Notes | Year 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983 |
Make / Model Ford F-100 Pickup | Series | Body | Notes | Year 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960 |
Make / Model Ford F-100 Ranger | Series | Body | Notes | Year 1996, 1997, 1998, 1999, 2000, 2001 |
Make / Model Ford F-150 | Series | Body | Notes | Year 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021 |
Make / Model Ford F-150 Heritage | Series | Body | Notes | Year 2004 |
Make / Model Ford F-250 | Series | Body | Notes | Year 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 |
Make / Model Ford F-250 Pickup | Series | Body | Notes | Year 1953, 1954, 1955, 1956, 1957, 1958, 1959 |
Make / Model Ford F-250 Super Duty | Series | Body | Notes | Year 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2021 |
Make / Model Ford F-350 | Series | Body | Notes | Year 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2011, 2012, 2013, 2014, 2015, 2016 |
Make / Model Ford F-350 Pickup | Series | Body | Notes | Year 1953, 1954, 1955, 1956, 1957, 1958, 1959 |
Make / Model Ford F-350 Super Duty | Series | Body | Notes | Year 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2021 |
Make / Model Ford F-500 | Series | Body | Notes | Year 1975, 1976, 1977 |
Make / Model Ford F1 | Series | Body | Notes | Year 1948, 1949, 1950, 1951, 1952 |
Make / Model Ford F2 | Series | Body | Notes | Year 1948, 1949, 1950, 1951, 1952 |
Make / Model Ford F3 | Series | Body | Notes | Year 1948, 1949, 1950, 1951, 1952 |
Make / Model Ford F4 | Series | Body | Notes | Year 1948, 1949, 1950, 1951, 1952 |
Make / Model Ford Ranchero | Series | Body | Notes | Year 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
Make / Model Ford Ranger | Series | Body | Notes | Year 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 |
