Classic Instruments® Electric Speedometer Ford Style Pulse Signal Generator
Fitment
Product Details
- Classic Instruments Offers A Full 5 Year Warranty On All Orders!
- Use With Classic Instruments And Other Electronic Gauge Packages
If your transmission has a port where a mechanical speedometer cable was attached, you will need a pulse signal generator. The pulse signal generator produces 16 pulses per revolution and has three connection wires. When using a pulse signal generator, you will need to calibrate the speedometer according to the 16,000 pulse per mile (ppm) chart of the installation manual. You will need to retain the gear and holder from the transmission end of the speedometer cable to use on the pulse signal generator. The superior coil resistance of the Classic Pulse Signal Generator delivers a clean, sharp pulse giving you accurate gauge readings.

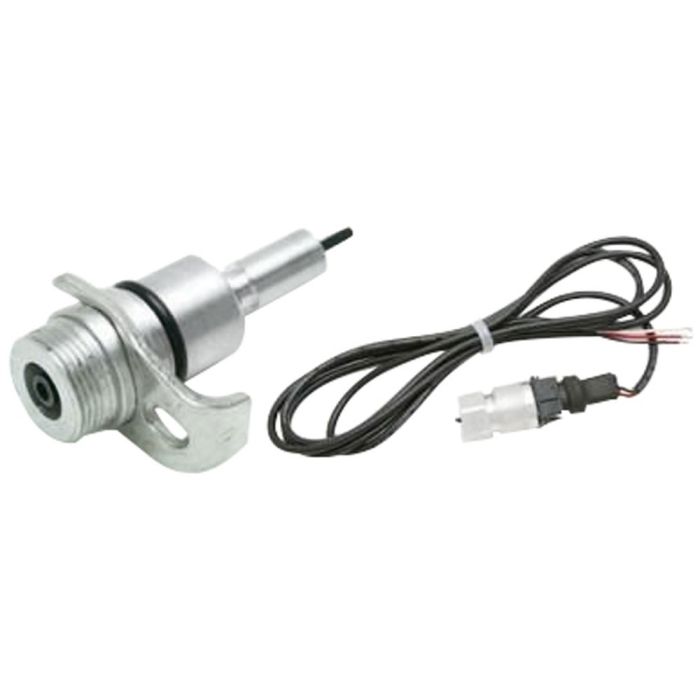

Ford Style Pulse Signal Generator
WARNING This product can expose you to chemicals including Phthalates which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Base Part Number | 89203 |
---|---|
Alt. # | 64-89203 |
Eck OEM Number | SN16F |
Brand | Classic Instruments |
Make / Model | Series | Body | Notes | Year |
---|---|---|---|---|
Make / Model Ford Edge | Series | Body | Notes | Year 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 |
Make / Model Ford Excursion | Series | Body | Notes | Year 2000, 2001, 2002, 2003, 2004, 2005 |
Make / Model Ford Expedition | Series | Body | Notes | Year 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 |
Make / Model Ford Explorer | Series | Body | Notes | Year 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 |
Make / Model Ford Explorer Sport Trac | Series | Body | Notes | Year 2001, 2002, 2003, 2004, 2005, 2007, 2008, 2009, 2010 |
Make / Model Ford F Series | Series | Body | Notes | Year 1948, 1949, 1950, 1951, 1952 |
Make / Model Ford F-100 | Series | Body | Notes | Year 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983 |
Make / Model Ford F-100 Pickup | Series | Body | Notes | Year 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960 |
Make / Model Ford F-100 Ranger | Series | Body | Notes | Year 1996, 1997, 1998, 1999, 2000, 2001 |
Make / Model Ford F-150 | Series | Body | Notes | Year 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 |
Make / Model Ford F-150 Heritage | Series | Body | Notes | Year 2004 |
Make / Model Ford F-250 | Series | Body | Notes | Year 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 |
Make / Model Ford F-250 Pickup | Series | Body | Notes | Year 1953, 1954, 1955, 1956, 1957, 1958, 1959 |
Make / Model Ford F-250 Super Duty | Series | Body | Notes | Year 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 |
Make / Model Ford F-350 | Series | Body | Notes | Year 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2011, 2012, 2013, 2014, 2015, 2016 |
Make / Model Ford F-350 Pickup | Series | Body | Notes | Year 1953, 1954, 1955, 1956, 1957, 1958, 1959 |
Make / Model Ford F-350 Super Duty | Series | Body | Notes | Year 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 |
Make / Model Ford F-500 | Series | Body | Notes | Year 1975, 1976, 1977 |
Make / Model Ford F1 | Series | Body | Notes | Year 1948, 1949, 1950, 1951, 1952 |
Make / Model Ford F2 | Series | Body | Notes | Year 1948, 1949, 1950, 1951, 1952 |
Make / Model Ford F3 | Series | Body | Notes | Year 1948, 1949, 1950, 1951, 1952 |
Make / Model Ford F4 | Series | Body | Notes | Year 1948, 1949, 1950, 1951, 1952 |
Make / Model Ford Ranchero | Series | Body | Notes | Year 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
Make / Model Ford Ranger | Series | Body | Notes | Year 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 |
