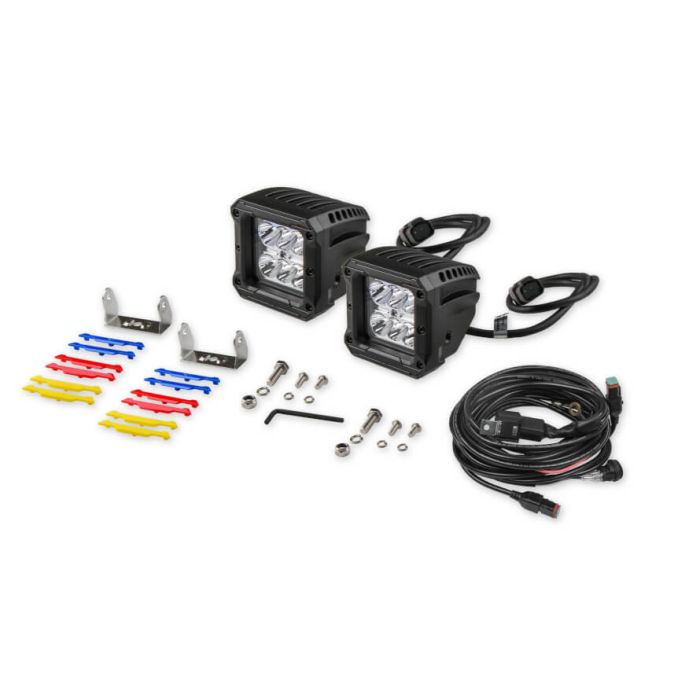

High Output Cube Lights - Beam Pattern 8° Spot Light w/ Pigtail Harness & Mounting Hardware
Product Details
- Die Cast Electrical System > Exterior Lighting > Headlight Assemblies and Components
- LED Cube Lights are Ideal for All Off-Road Lighting Applications
- Overall Dimensions: 3.190” Wide x 3.346” Tall x 3.000” Depth
- Light Output: 1,440 Lumens – Per Cube Light
- 18.0 Watts – Per Cube Light
- 6 LED’s - Osram® 3.0 Watt Each
- Dust & Waterproof: IP68 Rated
- Aluminum Housing w/ Stainless Steel Mounting Bracket on Bottom
- Input Voltage: 10-30 Volts DC
- Uses Only 1.1 Amps @ 13.8 Volts DC – Per Cube Light
- Color Temperature: 6000K (White)
- Black Finish on Housing
- Stainless Steel Mounting Bracket & Hardware
- Individual Lights Include Waterproof Connector & Pigtail
- (2) Light Sets Include Wiring Harness w/ Relay, Fuse, Switch & Waterproof Connectors
- For Off-Road Use
- Reverse Polarity Protection
- Color Accent Trim Pieces Included (Blue, Red & Yellow)
- Operating Temperature: -40°F to 140°F
- Beam Patterns: 8° Spot or 90° Flood
Bright Earth high output cube lights provide plenty of light for all your Off-Road Adventures. Each cube light provides 1,440 Lumens of light from the 6 LED's and uses only 1.1 amps at 13.8 volts. The heavy duty die-cast housing is dust and waterproof & includes stainless steel mounting bracket & hardware. Cube lights are available individually including waterproof connector & pigtail, or in Sets of (2) lights w/ easy plug in wiring harness (two light sets include harness w/ relay, fuse, waterproof connectors & switch). Choose from Spot or Flood light beam pattern. Ideal for use on Jeeps, Trucks, UTV's, and more.
High Output Cube Lights - Beam Pattern 8° Spot Light w/ Pigtail Harness & Mounting Hardware
WARNING This product can expose you to chemicals including Chromium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Base Part Number | 877743 |
---|---|
Brand | Holley |
Make / Model | Series | Body | Notes | Year |
---|---|---|---|---|
Make / Model Ford | Series | Body | Notes | Year 1986, 1997 |
Make / Model Ford Excursion | Series | Body | Notes | Year 2000, 2001, 2002, 2003, 2004, 2005 |
Make / Model Ford Expedition | Series | Body | Notes | Year 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021 |
Make / Model Ford F Series | Series | Body | Notes | Year 1948, 1949, 1950, 1951, 1952 |
Make / Model Ford F-100 | Series | Body | Notes | Year 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983 |
Make / Model Ford F-100 Pickup | Series | Body | Notes | Year 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960 |
Make / Model Ford F-100 Ranger | Series | Body | Notes | Year 1996, 1997, 1998, 1999, 2000, 2001 |
Make / Model Ford F-150 | Series | Body | Notes | Year 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021 |
Make / Model Ford F-150 Heritage | Series | Body | Notes | Year 2004 |
Make / Model Ford F-250 | Series | Body | Notes | Year 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 |
Make / Model Ford F-250 Pickup | Series | Body | Notes | Year 1953, 1954, 1955, 1956, 1957, 1958, 1959 |
Make / Model Ford F-250 Super Duty | Series | Body | Notes | Year 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2021 |
Make / Model Ford F-350 | Series | Body | Notes | Year 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2011, 2012, 2013, 2014, 2015, 2016 |
Make / Model Ford F-350 Pickup | Series | Body | Notes | Year 1953, 1954, 1955, 1956, 1957, 1958, 1959 |
Make / Model Ford F-350 Super Duty | Series | Body | Notes | Year 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2021 |
Make / Model Ford F-500 | Series | Body | Notes | Year 1975, 1976, 1977 |
Make / Model Ford F1 | Series | Body | Notes | Year 1948, 1949, 1950, 1951, 1952 |
Make / Model Ford F2 | Series | Body | Notes | Year 1948, 1949, 1950, 1951, 1952 |
Make / Model Ford F3 | Series | Body | Notes | Year 1948, 1949, 1950, 1951, 1952 |
Make / Model Ford F4 | Series | Body | Notes | Year 1948, 1949, 1950, 1951, 1952 |
