TCI Complete Chassis, Custom IFS And Four-Link Rear Suspension, Plain Package, 1935-1941 Car And Truck
Product Details
Shipping Notes
- Small Block Engine Mounts Pre-Mounted
- Automatic Transmission Mounts Pre-Mounted
- Tubular A-Arms
- 2" Drop Spindles
- RideTech Coilovers
- 1" Rear 4-Bars
- Power Steering Rack
- Front & Rear Sway Bar Kits
- Panard Bar Assembly
- 11" Smooth/Vented Brake Rotors
- Big-Bore Brake Calipers
- Power Pedal Assembly
- Stainless Steel Hardlines Pre-Plumbed
- Stainless Steel Flexlines Pre-Plumbed
- 9" Rear Housing With Nodular Iron Case
- 31-Spline Axles
- 11" Drum Brakes
- 3.00, 3.25, 3.50, 3.70, 3.89, 4.11, 4.30, Or 4.56 Gear Ratio
- Includes All Crossmembers & Body/Hood Latch Brackets
- Frame Retains The Factory Profile For Easier Of Mounting The Body
- MIG & TIG Welded For The Highest Quality
- Limited Lifetime Manufacturer's Warranty
- Proudly Made In The U.S.A.

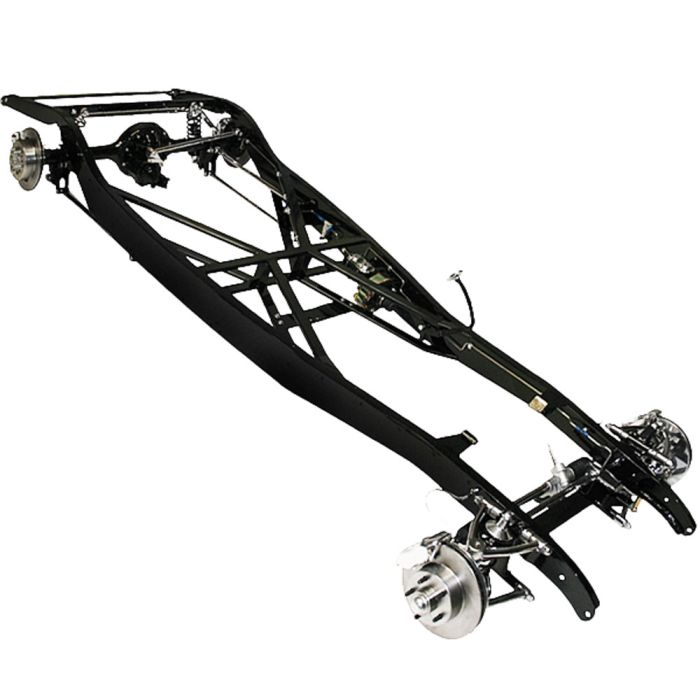

To build the best, start with the best! This complete chassis has been engineered for strength, safety, performance, drivability, rideability, and for both cars and trucks. TCI's 1935-1941 Ford complete chassis is made from 2" x 4" x .125 wall all-American Steel, which makes the TCI boxed frame rails far superior to the original stock Ford frame. This frame features full-length boxed rails with rectangular cross-members for added strength and rigidity. The redesigned cross-member also allows more room for exhaust system clearance.
TCI's custom independent front suspension system is a no-nonsense, no-compromise performance set-up based on their own custom spindle design. The geometry is specifically engineered to maximize cornering grip, yet provide great street manners for everyday cruising. Alignment adjustments are a snap using the offset stainless steel adjusters, and the ride height can be easily modified with the billet aluminum rebound-adjustable RideTech coilovers. Big-bore brake calipers and large 11 inch vented brake rotors in the front provide extra stopping power and safety.
The TCI Engineering 4-Link rear suspension assembly is engineered for street and straight-line applications so you can improve both traction and cornering performance while lowering the vehicle according to your needs. Just like all TCI Engineering products, this chassis comes with a limited lifetime warranty and is proudly made in the USA! Talk about a solid foundation to build off of! Count on MAC's to provide you with the highest quality parts that you want and need for your prized classic Ford.
NOTE: "Show Package" displayed (powder coating is not included).
TCI Complete Chassis With Custom IFS And Four-Link Rear Suspension For 1935-41 Ford Car Or Truck
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
| Base Part Number | 92014 |
|---|---|
| Alt. # | 64-92014 |
| Eck OEM Number | 104-1235-00-SB |
| Brand | Total Cost Involved |
| Make / Model | Series | Body | Notes | Year |
|---|---|---|---|---|
| Make / Model Ford | Series | Body | Notes | Year 1941 |
| Make / Model Ford Early V8 | Series | Body | Notes Car | Year 1935, 1936, 1937, 1938, 1939, 1940 |
| Make / Model Ford Early V8 | Series | Body | Notes Truck | Year 1935, 1936, 1937, 1938, 1939, 1940, 1941 |
| Make / Model Ford Model B | Series | Body | Notes | Year 1935, 1936, 1937, 1938, 1939, 1940, 1941 |
| Make / Model Ford Model B | Series | Body | Notes Car | Year 1935, 1936, 1937, 1938, 1939, 1940 |
| Make / Model Ford Model B | Series | Body | Notes Truck | Year 1935, 1936, 1937, 1938, 1939, 1940, 1941 |
