TCI Complete Chassis, Dropped Axle, Plain Package, 1928-1931 Model A
Fitment
Product Details
Shipping Notes
- TCI Complete Chassis
- Small Block Engine Mounts (Pre-Mounted)
- Automatic Transmission Mounts (Pre-Mounted)
- Tubular Front Axle
- Panhard Bar Kit
- Mono Spring With 1" Rear 4-Bars
- Adjustable RideTech Coilovers
- Chevy Vega Steering Box
- Front & Rear Sway Bar Kits
- Large 11" Smooth/Vented Brake Rotors
- Big-Bore Brake Calipers
- Power Brake Pedal Assembly
- Stainless Steel Hardlines (Pre-Plumbed)
- Stainless Steel Flexlines (Pre-Plumbed)
- 9" Rear Housing With Nodular Iron Case
- 3.00, 3.25, 3.50, 3.70, 3.89, 4.11, 4.30, Or 4.56 Gear Ratio
- 31 Spline Axles
- 11" Drum Brakes
- Includes All Crossmembers
- Includes Body/Hood Latch Brackets
- Frame Retains The Factory Profile
- MIG & TIG Welded For Highest Quality & Strength
- Limited Lifetime Manufacturer Warranty
- Proudly Made In The U.S.A.
To build the best, start with the best! TCI's 1928-1931 Ford complete chassis is made from 2" x 4" x .125 wall all-American Steel, which makes the TCI boxed frame rails far superior to the original stock Ford frame. TCI uses a dropped tubular front axle in conjunction with a mono spring and RideTech shocks for the front suspension, and rear suspension uses a traditional 4-link set up with adjustable coilovers.
The TCI Engineering 4-Link rear suspension assembly is engineered for street and straight-line applications so you can improve both traction and cornering performance while lowering the vehicle according to your needs. Big-bore brake calipers and large 11 inch vented brake rotors provide extra stopping power and safety.
This complete chassis has been engineered for strength, safety, performance, drivability, rideability, and for both cars and trucks. Just like all TCI Engineering products, the chassis comes with a limited lifetime warranty and is proudly made in the USA! Talk about a solid foundation to build off of! Count on MAC's to provide you with the highest quality parts that you want and need for your prized vintage Ford.
NOTE: "Show Package" displayed (powder coating is not included).

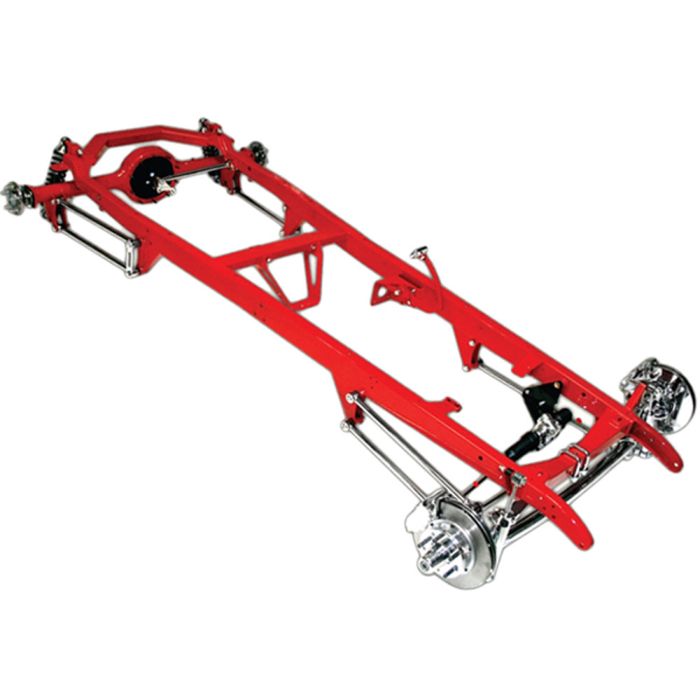

1928-31 Ford Model A TCI Complete Dropped-Axle Chassis
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
| Base Part Number | 91991 |
|---|---|
| Alt. # | 64-91991 |
| Eck OEM Number | 101-1215-00 |
| Brand | Total Cost Involved |
| Make / Model | Series | Body | Notes | Year |
|---|---|---|---|---|
| Make / Model Ford Model A | Series | Body | Notes | Year 1928, 1929, 1930, 1931 |
| Make / Model Ford Model A | Series | Body | Notes Car | Year 1928, 1929, 1930, 1931 |
| Make / Model Ford Model A | Series | Body | Notes Pickup | Year 1928, 1929, 1930, 1931 |
| Make / Model Ford Model AA | Series | Body | Notes | Year 1928, 1929, 1930, 1931 |
