TCI Complete Chassis, Dropped Axle, Plain Package, 1932 Model B
Fitment
Product Details
Shipping Notes
- Small Block Engine Mounts Pre-mounted
- Automatic Transmission Mounts Pre-Mounted
- Tubular Front Axle
- Panhard Bar Kit
- Mono Spring With 1" Rear 4-Bars
- Adjustable RideTech Coilovers
- Chevy Vega Steering Box
- Front & Rear Sway Bar Kits
- Panhard Bar Assembly
- 11" Smooth/Vented Brake Rotors,
- Big-Bore Brake Calipers
- Power Brake Pedal Assembly
- Stainless Steel Hardlines Pre-Plumbed
- Stainless Steel Flexlines Pre-Plumbed
- 9" Rear Housing With Nodular Iron Case
- 31-Spline Axles
- 11" Drum Brakes
- 3.00, 3.25, 3.50, 3.70, 3.89, 4.11, 4.30, Or 4.56 Gear Ratio
- Includes All Crossmembers & Body/Hood Latch Brackets
- Frame Retains Factory Profile For Easier Of Mounting The Body
- MIG & TIG Welded For The Highest Quality
- Limited Lifetime Manufacturer's Warranty
- Proudly Made In The U.S.A.
To build the best, start with the best! This complete chassis has been engineered for strength, safety, performance, drivability, rideability, and for both cars and trucks. This chassis is made from 2" x 4" x .125 wall all-American Steel, which makes the TCI boxed frame rails far superior to the original stock Ford frame.
TCI uses a dropped tubular front axle in conjunction with a mono spring and RideTech shocks for the front suspension, and rear suspension uses a traditional 4-link set up with adjustable coilovers. The 4-Link rear suspension assembly is engineered for street and straight-line applications so you can improve both traction and cornering performance while lowering the vehicle according to your needs. Big-bore brake calipers and large 11" vented brake rotors in the front provide extra stopping power and safety.
This complete TCI Engineering chassis comes with a limited lifetime warranty and is proudly made in the USA! Talk about a solid foundation to build off of! Count on MAC's to provide you with the highest quality parts that you want and need for your prized classic Ford.

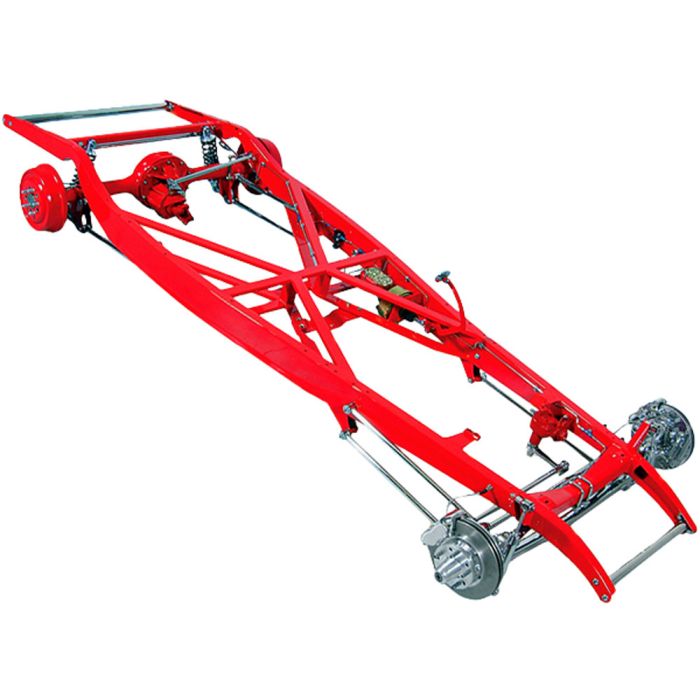

NOTE: "Show Package" displayed (powder coating is not included).
TCI Complete Dropped Axle Plain Package Chassis For 1932 Model B Ford
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
| Base Part Number | 91997 |
|---|---|
| Alt. # | 64-91997 |
| Eck OEM Number | 102-1215-00 |
| Brand | Total Cost Involved |
| Make / Model | Series | Body | Notes | Year |
|---|---|---|---|---|
| Make / Model Ford Early V8 | Series | Body | Notes | Year 1932 |
| Make / Model Ford Model B | Series | Body | Notes | Year 1932 |
