SKU
47-92002-1
Alt #:
64-92002

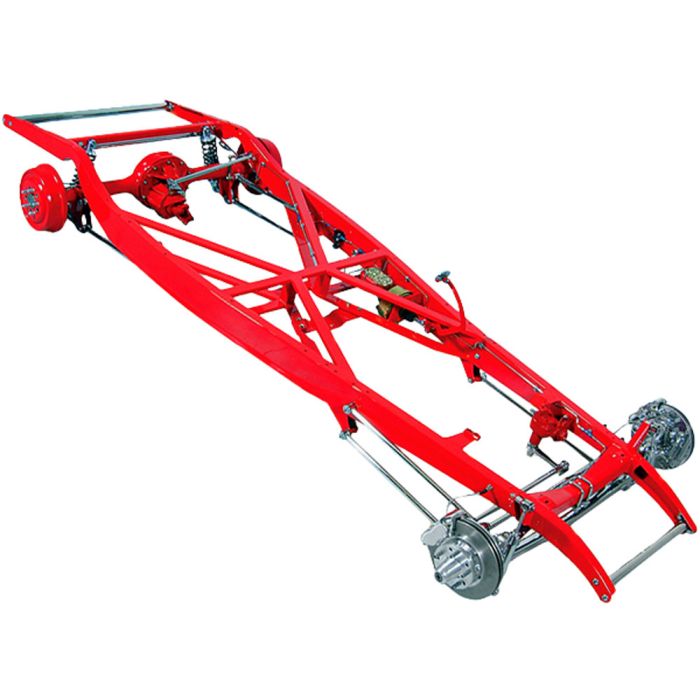

TCI Complete Chassis, Dropped Axle, Plain Package, 1933-1934 Model B

0% of 100
0  Reviews Add Your Review
$15,789.00 Each
Product Details
  To build the best, start with the best! This 1933-1934 Ford complete chassis has been engineered for strength, safety, performance, drivability, rideability, and for both cars and trucks. The frame is made from 2" x 4" x .125 wall all-American Steel, which makes the TCI boxed frame rails far superior to the original stock Ford frame. TCI uses a dropped tubular front axle in conjunction with a mono spring and RideTech shocks for the front suspension, and rear suspension uses a traditional 4-link set up with adjustable coilovers. The TCI Engineering 4-Link rear suspension assembly is engineered for street and straight-line applications so you can improve both traction and cornering performance while lowering the vehicle according to your needs. Big-bore brake calipers and large 11 inch vented brake rotors in the front provide extra stopping power and safety. Just like all TCI Engineering products, the chassis comes with a limited lifetime warranty and is proudly made in the USA! Talk about a solid foundation to build off of! Count on MAC's to provide you with the highest quality parts that you want and need for your prized classic Ford.   NOTE: "Show Package" displayed (powder coating is not included).
Shipping Notes
This item is a TRUCK ship item. You will be able to see your shipping estimate at checkout.
Availability: Ships Direct from Manufacturer - 2-3 Week Delivery
  • Small Block Engine Mounts Pre-Mounted
  • Automatic Transmission Mounts Pre-Mounted
  • Tubular Front Axle
  • Panhard Bar Kit
  • Mono Spring With 1" Rear 4-Bars
  • Adjustable RideTech Coilovers
  • Vega Steering Box
  • Front & Rear Sway Bar Kits
  • Panhard Bar Assembly
  • 11" Smooth/Vented Brake Rotors
  • Big-Bore Brake Calipers
  • Power Brake Pedal Assembly
  • Stainless Steel Hardlines Pre-Plumbed
  • Stainless Steel Flexlines Pre-Plumbed
  • 9" Rear Housing With Nodular Iron Case
  • 3.00, 3.25, 3.50, 3.70, 3.89, 4.11, 4.30 Or 4.56 Gear Ratio
  • 31-Spline Axles
  • 11" Drum Brakes
  • All Crossmembers & Body/Hood Latch Brackets
  • Frame Retains The Factory Profile For Easier Of Mounting The Body
  • MIG & TIG Welded For The Highest Quality
  • Limited Lifetime Manufacturer Warranty
  • Proudly Made In The U.S.A.



To build the best, start with the best! This 1933-1934 Ford complete chassis has been engineered for strength, safety, performance, drivability, rideability, and for both cars and trucks. The frame is made from 2" x 4" x .125 wall all-American Steel, which makes the TCI boxed frame rails far superior to the original stock Ford frame. TCI uses a dropped tubular front axle in conjunction with a mono spring and RideTech shocks for the front suspension, and rear suspension uses a traditional 4-link set up with adjustable coilovers.

The TCI Engineering 4-Link rear suspension assembly is engineered for street and straight-line applications so you can improve both traction and cornering performance while lowering the vehicle according to your needs. Big-bore brake calipers and large 11 inch vented brake rotors in the front provide extra stopping power and safety. Just like all TCI Engineering products, the chassis comes with a limited lifetime warranty and is proudly made in the USA! Talk about a solid foundation to build off of! Count on MAC's to provide you with the highest quality parts that you want and need for your prized classic Ford.



NOTE: "Show Package" displayed (powder coating is not included).

TCI Complete Dropped Axle Plain Package Chassis For 1933-1934 Model B Ford


Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
More Information
Base Part Number 92002
Alt. # 64-92002
Eck OEM Number 103-1215-00
Brand Total Cost Involved
Make / Model Series Body Notes Year
Make / Model Ford Series Body Notes Year 1934
Make / Model Ford Early V8 Series Body Notes Year 1933, 1934
Make / Model Ford Model B Series Body Notes Year 1933, 1934
